Connect the DARIAH Attribute Authority

This page is only for historical reference and has been superseded by the introduction of the AAI Proxy in July 2018.

Overview

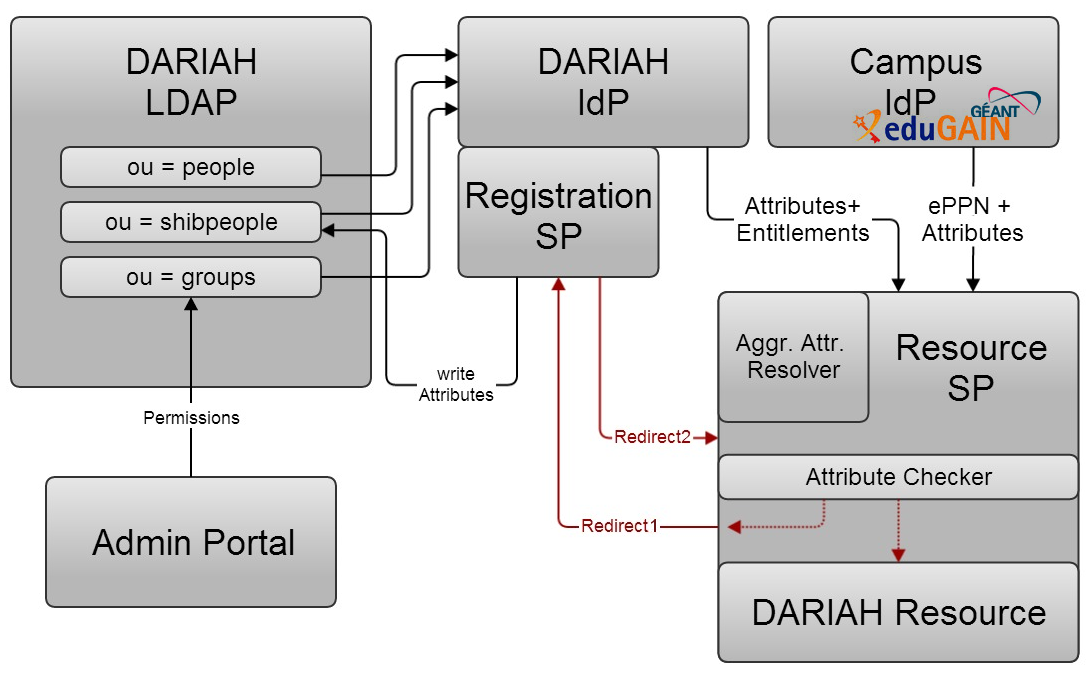

For convenience, here's a repeated picture of the DARIAH AAI overview:

Detailed Flow

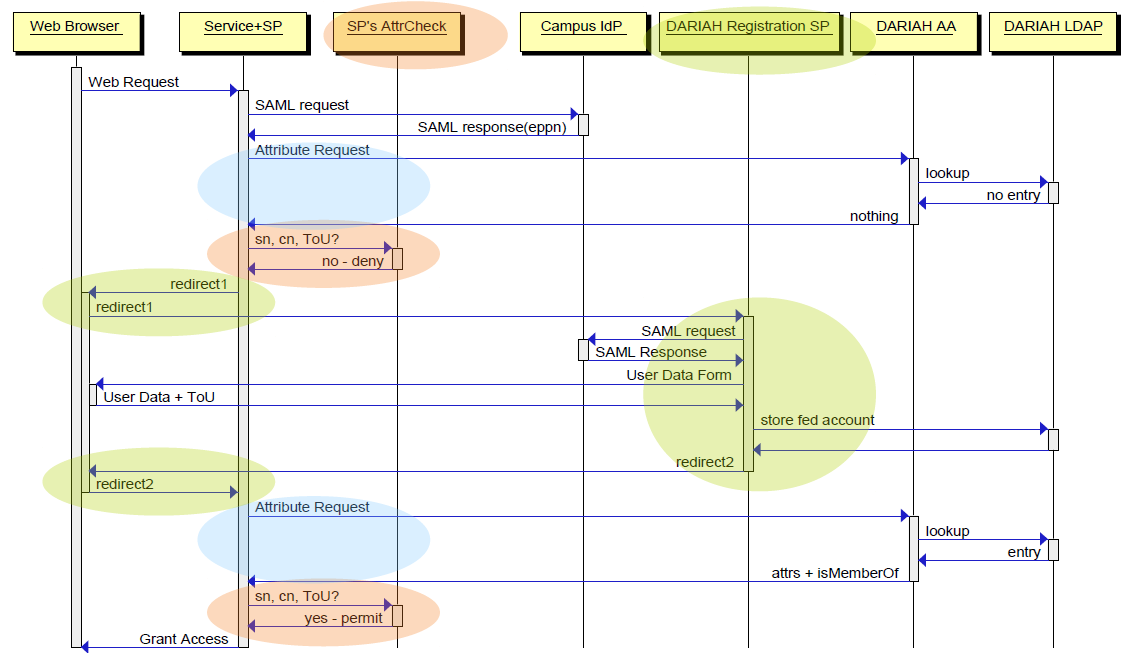

The same architecture, shown as a sequence diagram, follows:

Configure the SP to connect to the DARIAH Test AAI

Your SP wil be provided additional attributes by the DARIAH IdP, which will act as a SAML Attribute Authority (AA).

Metadata exchange

First we need to exchange Metadata with the DARIAH AA, which is treated as an IdP. If not done already...

SimpleAggregation Callout to the AA

Behind the scenes, the SP now must be configured to do a callout to the DARIAH AA for each new session. In shibboleth2.xml, locate the existing AttributeResolver element. Add another AttributeResolver row like this:

 <AttributeResolver
               type="SimpleAggregation"
               attributeId="eppn"
               format="urn:oid:1.3.6.1.4.1.5923.1.1.1.6">
         <Entity>https://ldap-dariah-clone.esc.rzg.mpg.de/idp/shibboleth</Entity>
</AttributeResolver>

For calling to the real AA, see Production

Make AttributeChecker Send to Registration

Triggered on the dariahTermsOfUse attribute, the user is sent off to DARIAH central registration (see DARIAH Self Service Documentation). First, tell the SP that these custom attributes exist. You do that in attribute-map.xml. Near the end, add the line: \<Attribute name="urn:oid:1.3.6.1.4.1.10126.1.52.4.15" id="dariahTermsOfUse"/>

Now, on every new session, let the SP check whether your user is already registered to DARIAH AAI. Locate the existing \<Handler> elements in \<Session> in shibboleth2.xml and add another Handler below the others:

<Handler type="AttributeChecker"
         Location="/AttrChecker"
         template="attrChecker.html"
         attributes="dariahTermsOfUse"
         flushSession="true"/>

In order to enable the AttributeChecker Handler, one must use a SessionHook. Locate the \<ApplicationDefaults> element itself and add the sessionHook attribute:

<ApplicationDefaults entityID="..."
         REMOTE_USER="eppn"
         sessionHook="/Shibboleth.sso/AttrChecker">

This relative URL is fixed and must correspond to the one defined for the Handler above.

Note the REMOTE_USER: DARIAH AAI will only accept the eduPersonPrincipalName attribute as an ID!

Also make sure you have at least the following two attributes defined in attribute-map.xml (but see all available Attributes here):

attribute-map.xml

<!-- eduPerson attributes -->
    <Attribute name="urn:oid:1.3.6.1.4.1.5923.1.1.1.6" id="eppn">

<!-- DARIAH-specific -->
    <Attribute name="urn:oid:1.3.6.1.4.1.10126.1.52.4.15" id="dariahTermsOfUse"/>

Redirect the User's Browser to Registration

Upon DENY, the AttributeChecker Handler will cause a client-side redirect to some HTML page. The default lives at /etc/shibboleth/attrChecker.html. We will configure there an HTML-based redirect to the DARIAH registration portal. Included in the Redirect: is:

  • The entityID of the IdP we had used to authenticate to
  • The return URL of our application behind SP (the "target")

Open the distributed attrChecker.html page. In the \<head> section, add the following on one long line:

<meta http-equiv="refresh" content="5; URL=https://dariah.daasi.de/Shibboleth.sso/Login?target=/cgi-bin/selfservice/ldapportal.pl%3Fmode%3Dauthenticate%3Bshibboleth%3D1%3Bnextpage%3Dregistration%3Breturnurl%3D<shibmlp target/>&entityID=<shibmlp entityID/>"/>

These elements mean:

  • 5 is the Delay (seconds) this page is shown. This can of course be adapted from 0..infinity
  • entityID=\<shibmlp entityID/> conveys the chosen IdP to the SP protecting the SelfService Portal, such that it can skip IdP discovery
  • returnurl%3D\<shibmlp target/> tells the URL of your application to the SelfService portal. It will redirect there once registration is complete
  • %3Fmode%3Dauthenticat%3Bshibboleth%3D1%3Bnextpage%3Dregistration are just parameters the DARIAH SelService Portal needs to log you in

In case your service has service-specific Terms of Use enabled, you should send the according DARIAH-group's ID along. Just insert another Query parameter "initialgroup=my-service-controibutors", i.e. change the URL like this: ...registration%3Breturnurl... to ...registration%3Binitialgroup%3Dmy-service-contributors%3Breturnurl... To learn your group's ID assigned to your service, and register some ToU document or link, please ask at the DARIAH Support.

Feel free to style and adapt the attrCheck.html page

Example text for HTML \<body>:

<h2>Insufficient Information</h2>
Your home organisation did not provide sufficient attributes to this service.
Therefore, you are now being redirected to the DARIAH central user registry.
<h3>More Details</h3>
Home Organisation Name: <b><shibmlp Meta-displayName /></b><br/>
Home Organisation entityID: <b><shibmlp entityID /></b><br/>
You were trying to access the following URL: <b><shibmlp target /></b><br/>
After Registration, you will be able to access your resources provided you are
authorized.<br/>

Test Access

Make sure you have an account at some Test IdP, i.e. you have exchanged Metadata, and your Shibboleth SP's shibboleth2.xml should cointain:

<SSO entityID="https://idp.test.org/idp/shibboleth">
    SAML2
</SSO>

Then proceed as follows:

  1. Restart Shibboleth Daemon
  2. Navigate to your protected resource https://sp.example.org/secure
  3. If your user account already exists in DARIAH LDAP, including ToU: you should be logged in
  4. If not: Web Browser will follow redirect to DARIAH test self service / registration portal
    1. Fill in your details (mind the mandatory fields)
    2. Do not forget to check the Terms of Use checkbox
    3. Click "save"
    4. You will be redirected back to /secure
    5. Depending on your Discovery Service settings, you might need to re-select your IdP

Switch to DARIAH Production AA

Only little changes needed to move from DARIAH test AAI to production

  • In shibboleth2.xml, replace the SAML Attribute Authority in \<AttributeResolver type="SimpleAggregation", i.e. replace \<Entity>https://ldap-dariah-clone.esc.rzg.mpg.de/idp/shibboleth\</Entity> with \<Entity>https://idp.de.dariah.eu/idp/shibboleth\</Entity>
  • In attrCheck.html, replace test SelfService with production: URL=https://dariah.daasi.de/... replace with URL=https://auth.dariah.eu/...
  • Metadata trust is established by entering your SP in a real federation, i.e. follow the federation documentation and do not forget to opt-in for eduGAIN.
  • Tell the DARIAH admins via register@dariah.eu that your SP (don't forget to mention the entityID of your production SP) wants to receive attributes from the DARIAH production IdP
  • Configure IdP discovery:
    <SSO discoveryProtocol="SAMLDS" discoveryURL="https://auth.dariah.eu/CDS/WAYF">
        SAML2
    </SSO>
